Tool trolley ∙ i 179NXL ∙ assortment


Product information

  • Application:
    Efficient, mobile organisation of tools
  • Tool trolley
  • 7 flat drawers and 1 high drawer
  • Complete with 321-piece tool assortment in Safety-Insert-System soft foam insert

Work areas

  • Much larger storage and work areas in stainless steel
  • Fully sealed work surface protects inside of trolley from leaking liquids
  • Interfaces integrated in the work area for accessories such as laptop holders and top modules
  • Stainless steel work surface
  • Extra protection through high-quality plastic end caps

Body / Pull-handle

  • Extremely robust design thanks to dual-wall structure
  • Complete welded construction of the entire body for tough daily workshop use
  • Optimised, yielding edge protection on all four corners with real impact protection thanks to internal damping concept
  • Ergonomically optimised pull handle for better manoeuvrability
  • Brushed stainless steel handle

Locking concept

  • Ergonomically arranged side lock position for better operability protects keys and lock against damage
  • Highly secure closing system with central locking technology for optimum protection of your property
  • 2-stage locking
    • Central locking, lockable with cylinder lock and 2 folding keys
    • Mutual drawer locking for minimum tilting risk

Drawer concept

  • Self-closing and reciprocal locking of the drawers prevents unwanted opening
  • 100% sliding-out with ball-bearing telescopic slides
  • Drawer design for optimum use of the interior
  • Drawer fronts for optimised handling
  • Dirt-resistant drawer coating for easy cleaning

High performance chassis

  • Large wheels with high loading capacity, precision ball bearing and dual rounded rim in the pivot bearing, easy manoeuvrability, even with high dynamic load
  • 2 swivel castors with dual brake:
    • Braked castors prevent rolling away
    • Braked swivel bearings prevent the swivel castors from turning, e.g. on inclined surfaces
  • Protective ring prevents dirt and threads from getting in
  • Elastic castors enable smooth movement
  • Tool trolley Made in Germany

Variants

Loading...

Technical Data

Number of tools 321
Drawers, high 1× 166 x 696 x 398 mm
HP ratchet included
Drawers, flat 7× 81 x 696 x 398 mm
Length x width x height 959 x 518 x 1020 mm
Drawers total 8
Loading capacity of high drawer 40 kg
(Drawer) size for plastic drawer insert
  • 4/3+
Drawer dimensions 696 x 398
Drawer comfort feature
  • Self-closing
Drawer sliding-out %
  • 100%
Drawer guide
  • With ball-bearing telescopic slides
Drawer locking
Drawer lock
  • With 2 folding keys
Worktop
  • Stainless steel
Tool trolley impact protection
  • Rubber edge protection protects all four corners of the vehicle
Loading capacity (static) 1000 kg
Total loading capacity (dynamic) 750 kg
Number of swivel castors 2
Diameter of swivel castors 125 mm
Number of fixed castors 2
Diameter of fixed castors 125 mm
Number of castors with brake 2
Colour
  • HAZET blue

partslist

Loading...

downloads / pdf

179nxl_bedienungsanleitung_operating-instructions.pdf

Operating instructions

show pdf

179nx-8_ersatzteilliste_spare-parts.pdf

spare parts

show pdf

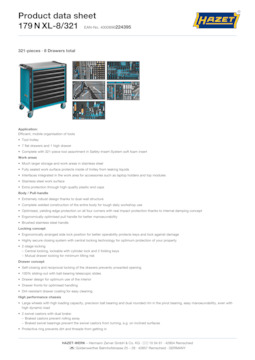

179nxl-8_321_datasheet_en.pdf

Datasheet

show pdf
