1/2 inch (12.5 mm) square ∙ hollow Impact socket ∙ Outside 12-point traction profile ∙ 24 mm


Product information

  • Application:
    Operation of cardan shaft screw connection on VW Golf model year 2004 →, Touran model year 2004 →, Golf Plus model year 2006 →, Eos model year 2006 →, Scirocco model year 2009 →, Tiguan model year 2008 →, AUDI A3 model year 2004 →, TT model year 2007 →
  • Made in Germany

Variants

Loading...

Technical Data

Output
Wrench size 24 mm
Drive
  • 1/2 inch (12.5 mm) square, hollow
Manual/impact operation
  • For impact operation
Diameter d1 (output side) 35 mm
Diameter d2 (drive side) 30 mm
Standard
  • DIN 3129
  • ISO 2725-2
Design drive / output
  • With borehole for locking pin or safety spring and groove for O-ring
Surface
  • phosphatized, oiled
Depth 17.5 mm
Length 44 mm

downloads / pdf

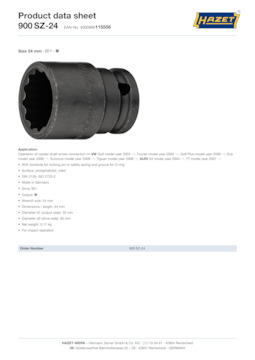

900sz-24_datasheet_en.pdf

Datasheet

show pdf
