1/2 inch (12.5 mm) square ∙ hollow Impact socket ∙ Outside 12-point traction profile ∙ 36 mm


Product information

  • Application:
    Axle shaft nut on
    - BMW 3 series ∙ 5 series ∙ 7 series ∙ Z3 ∙ M3 ∙ VW Polo model year 2001 → ∙ SEAT Ibiza model year 2002 →
    - VW Golf Plus 1.9 TDi model year 2005 → ∙ Polo 5
    Wheel hub screw connection on the front axle
    RENAULT Twingo 3 and SMART (453) Fortwo / Forfour model year 2014 →
  • Made in Germany

Variants

Loading...

Technical Data

Output
Wrench size 36 mm
Drive
  • 1/2 inch (12.5 mm) square, hollow
Manual/impact operation
  • For impact operation
Diameter d1 (output side) 50 mm
Diameter d2 (drive side) 30 mm
Standard
  • DIN 3129
  • ISO 2725-2
Design drive / output
  • With borehole for locking pin or safety spring and groove for O-ring
Surface
  • phosphatized, oiled
Depth 25 mm
Length 60 mm

downloads / pdf

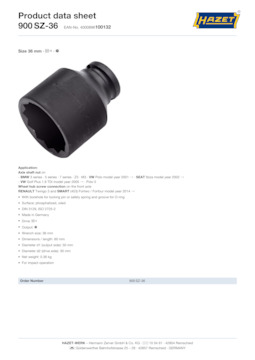

900sz-36_datasheet_en.pdf

Datasheet

show pdf
